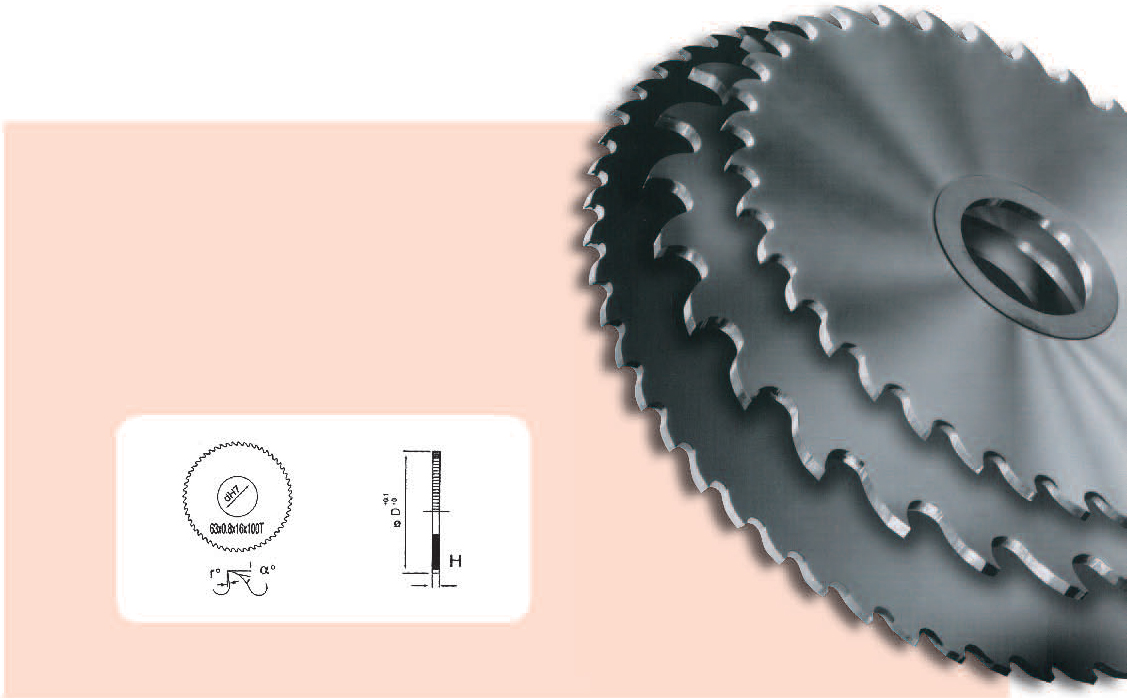

整体硬质合金S形齿锯片铣刀
特点：适用于在微控机床上加工深槽以及易变形材料
应用于普通钢、调质钢、铜合金、工程塑料、铸铁、铝合金等
|
外径 |
厚度 |
内径 |
齿数 |
外径 |
厚度 |
内径 |
齿数 |
|
32 |
0.5-4 |
6 8 10 12.7 13 |
10-30 |
130 |
1.0-10 |
22 25.4 27 32 |
40-108 |
|
40 |
0.5-4 |
8 10 12.7 13 |
10-30 |
150 |
1.0-10 |
22 25.4 27 32 |
40-108 |
|
45 |
0.5-5 |
8 10 12.7 13 |
10-46 |
160 |
1.0-12 |
22 25.4 27 32 |
40-120 |
|
50 |
0.5-5 |
8 10 12.7 13 16 |
10-50 |
180 |
1.5-12 |
25.4 27 32 40 |
48-120 |
|
55 |
0.5-5 |
10 12.7 13 16 |
10-56 |
200 |
1.5-12 |
25.4 27 32 40 |
48-140 |
|
60 |
0.5-6 |
12.7 13 16 |
10-60 |
250 |
2-12 |
25.4 273240 |
60-150 |
|
63 |
0.5-6 |
12.7 13 16 |
20-60 |
|
|
|
|
|
70 |
0.5-8 |
16 22 25.4 |
20-70 |
|
|
|
|
|
75 |
0.5-8 |
16 22 25.4 |
20-72 |
|
|
|
|
|
80 |
0.8-8 |
22 25.4 27 |
24-80 |
|
|
|
|
|
85 |
0.8-8 |
22 25.4 27 |
24-80 |
|
|
|
|
|
90 |
0.8-8 |
22 25.4 27 |
30-86 |
|
|
|
|
|
95 |
0.8-8 |
22 25.4 27 |
30-90 |
|
|
|
|
|
100 |
0.8-10 |
22 25.4 27 |
30-90 |
|
|
|
|
|
105 |
0.8-10 |
22 25.4 27 |
30-90 |
|
|
|
|
|
110 |
0.8-10 |
22 25.4 27 32 |
36-100 |
|
|
|
|
|
115 |
1.0-10 |
22 25.4 27 32 |
36-100 |
|
|
|
|
|
120 |
1.0-10 |
22 25.4 27 32 |
36-100 |
|
|
|
|
具体形状、尺寸根据用户要求生产。
