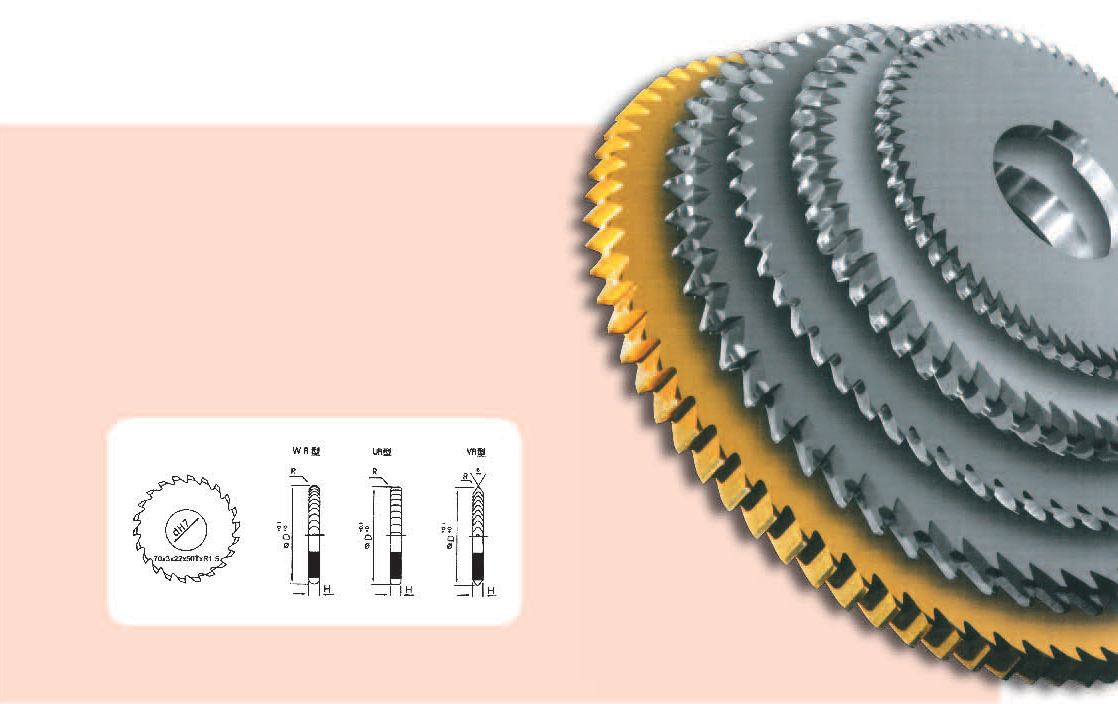

Features: For machining circular surface and profiled surface on the micro-control machine tool
Applied to ordinary steel, quenched and tempered steel, stainless steel, cast iron, non-ferrous metals
|
Outer diameter |
Thickness |
Inside diameter |
Teeth |
Outer diameter |
Thickness |
Inside diameter |
Teeth |
|
25 |
0.2-4 |
6 8 10 |
10-30 |
160 |
1-10 |
22 25.4 27 32 |
60-120 |
|
32 |
0.2-4 |
8 10 13 |
10-36 |
180 |
1-10 |
22 25.4 27 32 |
60-120 |
|
40 |
0.3-4 |
10 13 16 |
16-46 |
200 |
1.5-10 |
22 25.4 27 32 |
60-120 |
|
46 |
0.3-4 |
13 16 |
20-46 |
|
|
|
|
|
50 |
0.5-4 |
13 16 |
24-52 |
|
|
|
|
|
60 |
0.5-5 |
13 16 |
24-64 |
|
|
|
|
|
63 |
0.5-5 |
13 16 |
24-64 |
|
|
|
|
|
70 |
0.5-6 |
22 25.4 |
30-72 |
|
|
|
|
|
75 |
0.5-6 |
22 25.4 |
32-80 |
|
|
|
|
|
80 |
0.6-6 |
22 25.4 |
36-90 |
|
|
|
|
|
85 |
0.6-6 |
22 25.4 |
36-90 |
|
|
|
|
|
90 |
0.6-7 |
22 25.4 27 |
40-90 |
|
|
|
|
|
100 |
0.8-7 |
22 25.4 27 |
45-90 |
|
|
|
|
|
110 |
0.8-7 |
22 25.4 27 |
45-90 |
|
|
|
|
|
120 |
0.8-7 |
22 25.4 27 |
48-100 |
|
|
|
|
|
125 |
0.8-7 |
22 25.4 27 |
48-100 |
|
|
|
|
|
130 |
0.8-7 |
22 25.4 27 32 |
50-110 |
|
|
|
|
|
150 |
0.8-7 |
22 25.4 27 32 |
56-118 |
|
|
|
|
Specific shape, size according to user requirements.
