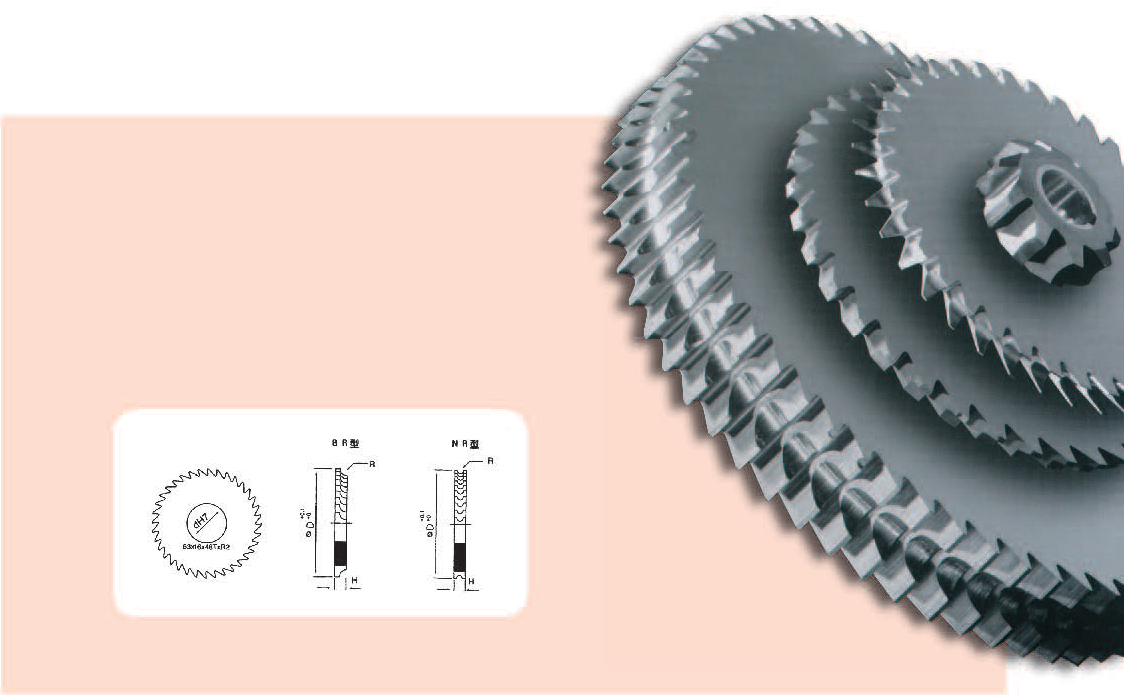

Solid carbide cutter blade concave semicircle
Features: For the microcontroller on the machining arc or stepped, etc.
Applied to ordinary steel, quenched and tempered steel, stainless steel, cast iron, non-ferrous metals
|
Outer diameter |
Thickness |
Inside diameter |
Teeth |
|
32 |
2-5 |
8 10 13 |
10-20 |
|
40 |
2-5 |
10 12.7 16 |
16-30 |
|
45 |
2-5 |
10 12.7 16 |
16-30 |
|
50 |
3-6 |
12.7 16 |
20-32 |
|
55 |
3-6 |
12.7 16 |
20-32 |
|
60 |
3-8 |
12.7 16 |
24-40 |
|
63 |
3-8 |
12.7 16 |
24-40 |
|
70 |
3-8 |
12.7 16 22 25.4 |
28-45 |
|
75 |
3-8 |
16 22 25.4 |
30-50 |
|
80 |
4-8 |
22 25.4 27 |
30-50 |
|
90 |
4-8 |
22 25.4 27 |
30-56 |
|
100 |
4-8 |
22 25.4 27 31 75 |
36-56 |
|
110 |
4-8 |
22 25.4 27 31 75 |
36-60 |
|
115 |
4-10 |
22 25.4 27 31 75 |
36-60 |
|
120 |
4-10 |
22 25.4 27 31 75 |
36-66 |
|
130 |
4-15 |
22 25.4 27 31 75 |
36-90 |
|
140 |
4-15 |
22 25.4 27 31 75 |
36-90 |
|
150 |
4-15 |
22 25.4 27 31 75 |
36-90 |
Specific shape, size according to user requirements.
