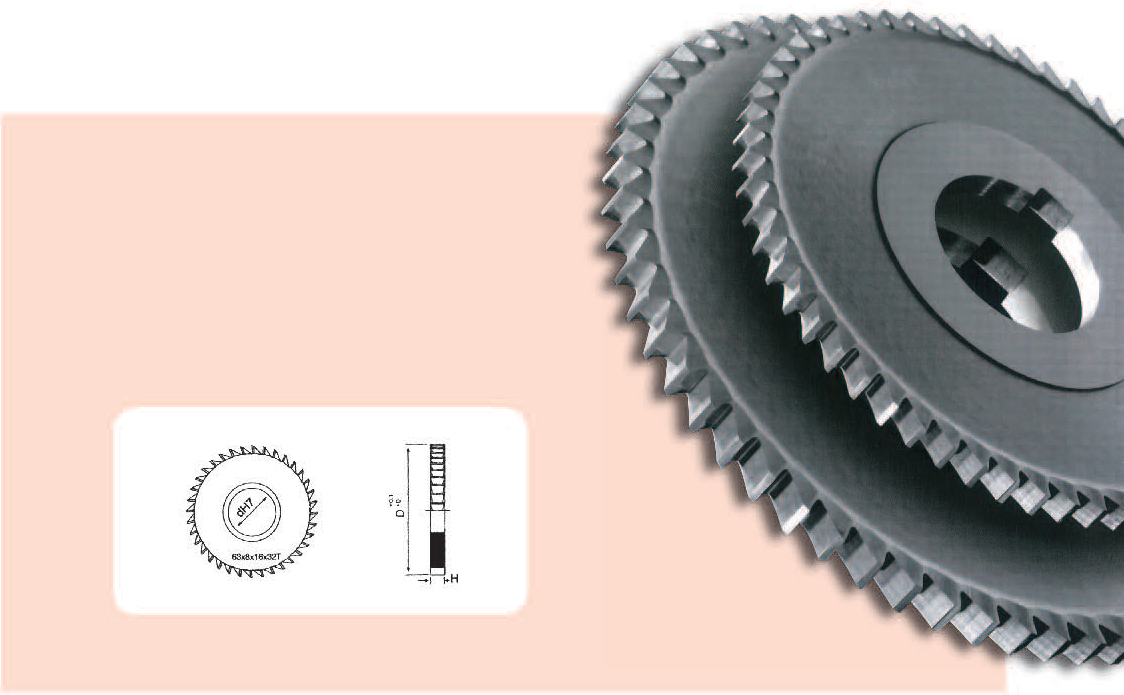

Solid carbide blade cutter blade on three sides
Features: Suitable for machining grooves, a step on the micro-control machine tools, etc.
Applied to ordinary steel, quenched and tempered steel, stainless steel, cast iron, non-ferrous metals
|
Outer diameter |
Thickness |
Inside diameter |
Teeth |
|
60 |
2-10 |
16 22 |
30-70 |
|
70 |
2-10 |
22 25.4 |
36-76 |
|
75 |
2-10 |
22 25.5 |
36-80 |
|
80 |
3-10 |
22 25.4 27 |
36-86 |
|
90 |
3-10 |
22 25.4 27 |
36-90 |
|
100 |
3-10 |
22 25.4 27 |
40-90 |
|
110 |
3-10 |
22 25.4 27 |
40-90 |
|
120 |
3-10 |
22 25.4 27 |
46-100 |
|
130 |
3-10 |
22 25.4 27 32 |
46-100 |
|
150 |
3-10 |
22 25.4 27 32 |
46-100 |
|
160 |
3-12 |
22 25.4 27 32 |
50-120 |
|
180 |
3-12 |
22 25.4 27 32 |
50-120 |
|
200 |
4-15 |
22 25.4 27 32 |
60-150 |
Specific shape, size according to user requirements.
